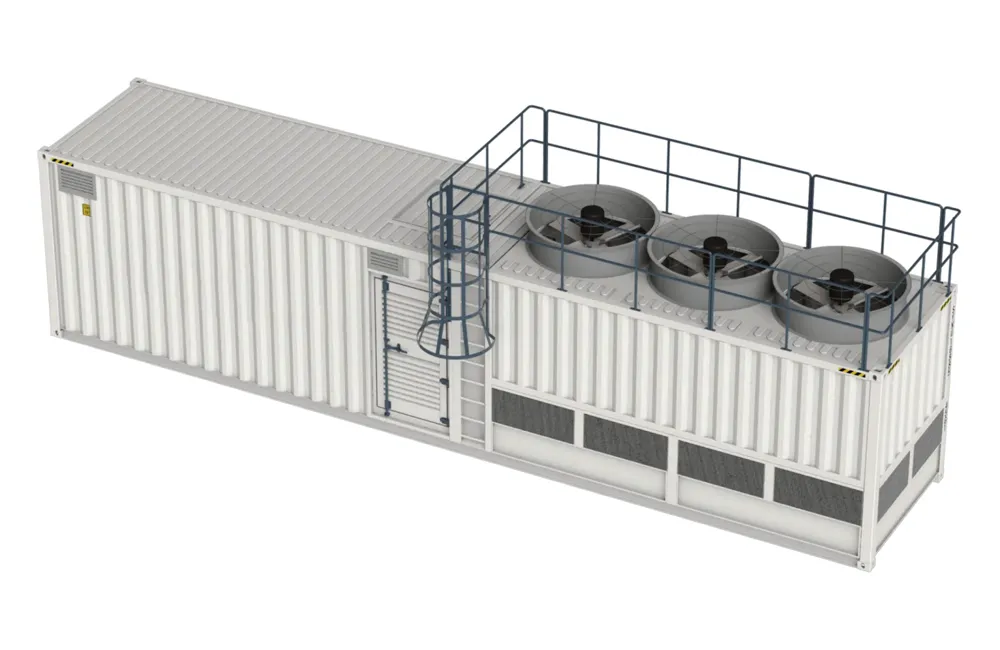

Immersion Cooling Plant Type 1.0 MW
Introduction
This immersion cooling system is built into a standard 40-foot high container and consists of the following three main areas:
Immersion Oil Cooling Tank Area
· Houses the immersion tanks for high-efficiency liquid cooling.
· Designed to support high-density computing equipment.
Equipment Area
· Integrates key subsystems including the Power Distribution Unit (PDU), Coolant Distribution Unit (CDU) piping, monitoring, lighting, and ventilation.
· Enables centralized management and streamlined operations.
Dry & Wet Combined Closed Cooler Area
· Connects externally to provide efficient heat exchange.
· Supports hybrid cooling for improved performance in various climates.
Factory Prefabricated & Tested
· All components are pre-installed, wired, and tested before delivery.
· Ensures high reliability and fast on-site deployment.
Specification
|
Dimension |
40HQ |
|
Number of Miners |
128 X M66+ |
|
Heat Dissipation |
1.0 MW |
|
Flow Rate |
200 m³/h |
|
Inlet and Outlet Temperature |
50-58℃ |
|
Power Supply |
3*380V/3*415V/3*480V, 50/60Hz |
|
Dry-Wet Combined Cooler |
Max Water Consumption 1.8m3/h |
|
Power Distribution Unit |
Smart PDU |
