Caterpillar Engine Radiator

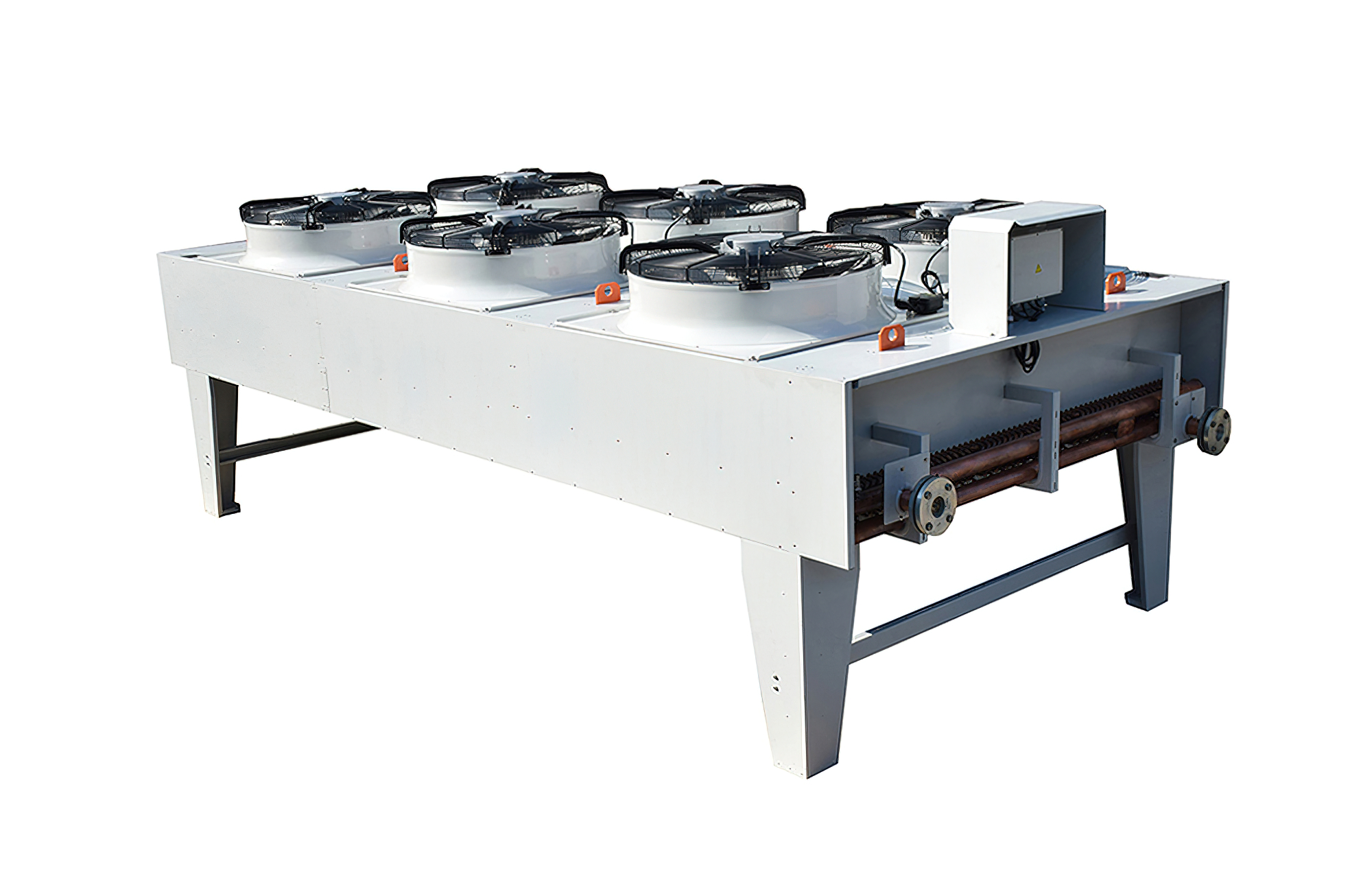

Generator Remote Radiator is heat exchanger device that consists of a series of tubes and fins. Air passes over the fins, which are attached to the tubes carrying the hot fluid. This design increases the surface area for heat transfer, allowing the cooler to efficiently dissipate heat from the fluid into the surrounding air.

Email: sales@immersion-energy.com

Tel: 00862135324116

Whatsapp: 8613916147965

Caterpillar Engine Radiator

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Advantages：

●Efficient Heat Dissipation: Fins increase the heat exchange area, enabling quick heat transfer from the working medium to the air.
●Water Conservation: Uses air as a cooling medium, eliminating the need for water, ideal for areas with scarce water resources.
●Strong Adaptability: Operates reliably in high-temperature and high-pressure environments, suitable for power, petrochemical, and metallurgical industries.
●Compact Structure: Designed for a small footprint, making it easy to install in limited spaces.
●Low Operating Costs: Air cooling reduces the need for water and chemicals, lowering long-term costs.
●Simple Maintenance: The straightforward design facilitates easy inspection and cleaning, reducing maintenance efforts.
●Low Noise: Equipped with low-noise fans and vibration damping, minimizing environmental impact.
●High Reliability: With no complex water systems, the failure rate is low, ensuring reliable operation.
●Customizable Length: Can be made in extended lengths, suitable for demanding applications.

Application：

Suitable for environments with limited water resources or where water cooling is not feasible, commonly used in cooling processes in industries such as power generation, petrochemicals, and metallurgy.

References：

Technical Data

Dry cooler SHSL-D3 series parameter(fin space 2.1mm)

Type							SHSL-D3-042-1X800	SHSL-D3-046-1X800	SHSL-D3-051-1X800	SHSL-D3-087-2X800	SHSL-D3-094-2X800	SHSL-D3-103-2X800	SHSL-D3-125-3X800	SHSL-D3-146-3X800	SHSL-D3-153-3X800	SHSL-D3-175-4X800	SHSL-D3-188-4X800
Capacity	Water	35℃ outdoor temp.	Inlet	45℃,	KW		42.1	46.1	50.6	87.3	93.6	102.9	124.9	145.9	153.3	174.5	187.9
	Water		outlet	40℃			42.1	46.1	50.6	87.3	93.6	102.9	124.9	145.9	153.3	174.5	187.9
	20% Glycol		Inlet	45℃			40.8	45.1	49.7	84.5	91.8	100.9	119.4	143.0	150.4	168.9	184.3
	20% Glycol		outlet	40℃			40.8	45.1	49.7	84.5	91.8	100.9	119.4	143.0	150.4	168.9	184.3
Medium		Water flow			M3/h		7.3	8.0	8.8	15.2	16.3	17.9	21.7	25.4	26.6	30.3	32.7
Medium		Pressure drop			kPa		49	69	97	48	98	93	21	97	89	48	98
Air flow					M3/h		21454	20531	19696	42906	41061	39390	64364	61585	59087	85811	82120
Fan motor(400V/3N/50HZ)					W		1800	1800	1800	3600	3600	3600	5400	5400	5400	7200	7200
Fan motor(400V/3N/50HZ)					A		3.8	3.8	3.8	7.6	7.6	7.6	11.4	11.4	11.4	15.2	15.2
Fan					No X φ		1x1x800	1x1x800	1x1x800	1x2x800	1x2x800	1x2x800	1x3x800	1x3x800	1x3x800	2x2x800	2x2x800
Sound pressure level					dB(A)		50.0	50.0	50.0	51.0	51.0	51.0	53.0	53.0	53.0	54.0	54.0
Sound pressure level					10m		50.0	50.0	50.0	51.0	51.0	51.0	53.0	53.0	53.0	54.0	54.0
Dimension					L	mm	2000	2000	2000	3800	3800	3800	5600	5600	5600	3800	3800
					W	mm	1084	1084	1084	1084	1084	1084	1084	1084	2108	2108	2108
					H	mm	1328	1328	1328	1328	1328	1328	1328	1328	1328	1328	1328
					A	mm	1728	1728	1728	3528	3528	3528	5328	5328	5328	3528	3528
					B1	mm	--	--	--	1764	1764	1764	1776	1776	1776	1764	1764
					B2	mm	--	--	--	1764	1764	1764	1776	1776	1776	1764	1764
					B3	mm	--	--	--	--	--	--	1776	1776	1776	--	--
					B4	mm	--	--	--	--	--	--	--	--	--	--	--
					X	mm	997	997	997	997	997	997	997	997	997	2021	2021
Inlet φ						mm	2”	2”	2”	2 1/2”	2 1/2”	2 1/2”	3’	3’	3’	4”	4”
Inlet φ						mm	2”	2”	2”	2 1/2”	2 1/2”	2 1/2”	3’	3’	3’	4”	4”
Product weight(empty)						kg	225	233	241	357	373	392	796	527	749	812	1062

Type							SHSL-D3-206-4X800	SHSL-D3-250-6X800	SHSL-D3-292-6X800	SHSL-D3-307-6X800	SHSL-D3-340-8X800		SHSL-D3-389-8X800		SHSL-D3-406-8X800	SHSL-D3-431-8X800	SHSL-D3-491-10X800	SHSL-D3-512-10X800		SHSL-D3-607-12X800
Capacity	Water	35℃ outdoor temp.	Inlet	45℃,	KW		205.8	249.8	291.9	306.6	340.5		389.1		406.0	431.3	490.6	511.6		606.9
			outlet	40℃
	20% Glycol		Inlet	45℃			201.9	238.8	286.1	300.8	329.7		381.5		398.5	420.5	482.9	504.1		597.5
			outlet	40℃
Medium		Water flow			M3/h		35.8	43.4	50.7	53.3	59.2		67.6		70.6	75.0	85.3	88.9		105.5
		Pressure drop			kPa		92	21	98	88	46		99		79	82	99	98		97
Air flow					M3/h		78781	128728	123170	118174	171631		160328		153274	214533	200405	191587		227449
Fan motor(400V/3N/50HZ)					W		7200	10800	10800	10800	14400		14400		14400	18000	18000	18000		21600
					A		15.2	22.8	22.8	22.8	22.80		30.40		30.40	38.00	38.00	38.00		45.60
Fan					No X φ		2x2x800	2x3x800	2x3x800	2x3x800	2x4x800		2x4x800		2x4x800	2x5x800	2x5x800	2x5x800		2x6x800
Sound pressure level					dB(A)		54.0	56.0	56.0	56.0	58.0		58.0		58.0	60.0	60.0	60.0		62.0
					10m
Dimension					L	mm	3800	5600	5600	5600	7400		7400		7400	9200	9200	9200		11000
					W	mm	2108	2108	2108	2108	2108		2108		2108	2108	2108	2108		2108
					H	mm	1328	1328	1328	1328	1328		1328		1328	1328	1328	1328		1328
					A	mm	3528	5328	5328	5328	7128		7128		7128	8929	8929	8929		10728
					B1	mm	1764	1776	1776	1776	2376		2376		2376	2232	2232	2232		2682
					B2	mm	1764	1776	1776	1776	2376		2376		2376	2232	2232	2232		2682
					B3	mm	--	1776	1776	1776	2376		2376		2376	2232	2232	2232		2682
					B4	mm	--	--	--	--	--		--		--	2232	2232	2232		2682
					X	mm	2021	2021	2021	2021	2021		2021		2021	2021	2021	2021		2021
Inlet φ						mm	4”	DN125	DN125	DN125		DN125		2x4”	2x4”	2x4”	2xDN125		2xDN125	2xDN125
Inlet φ						mm	4”	DN125	DN125	DN125		DN125		2x4”	2x4”	2x4”	2xDN125		2xDN125	2xDN125
Product weight(empty)						kg	1127	1373	1462	1704		1785		1816	2150	2230	2380		2590	2780
