Remote Radiator

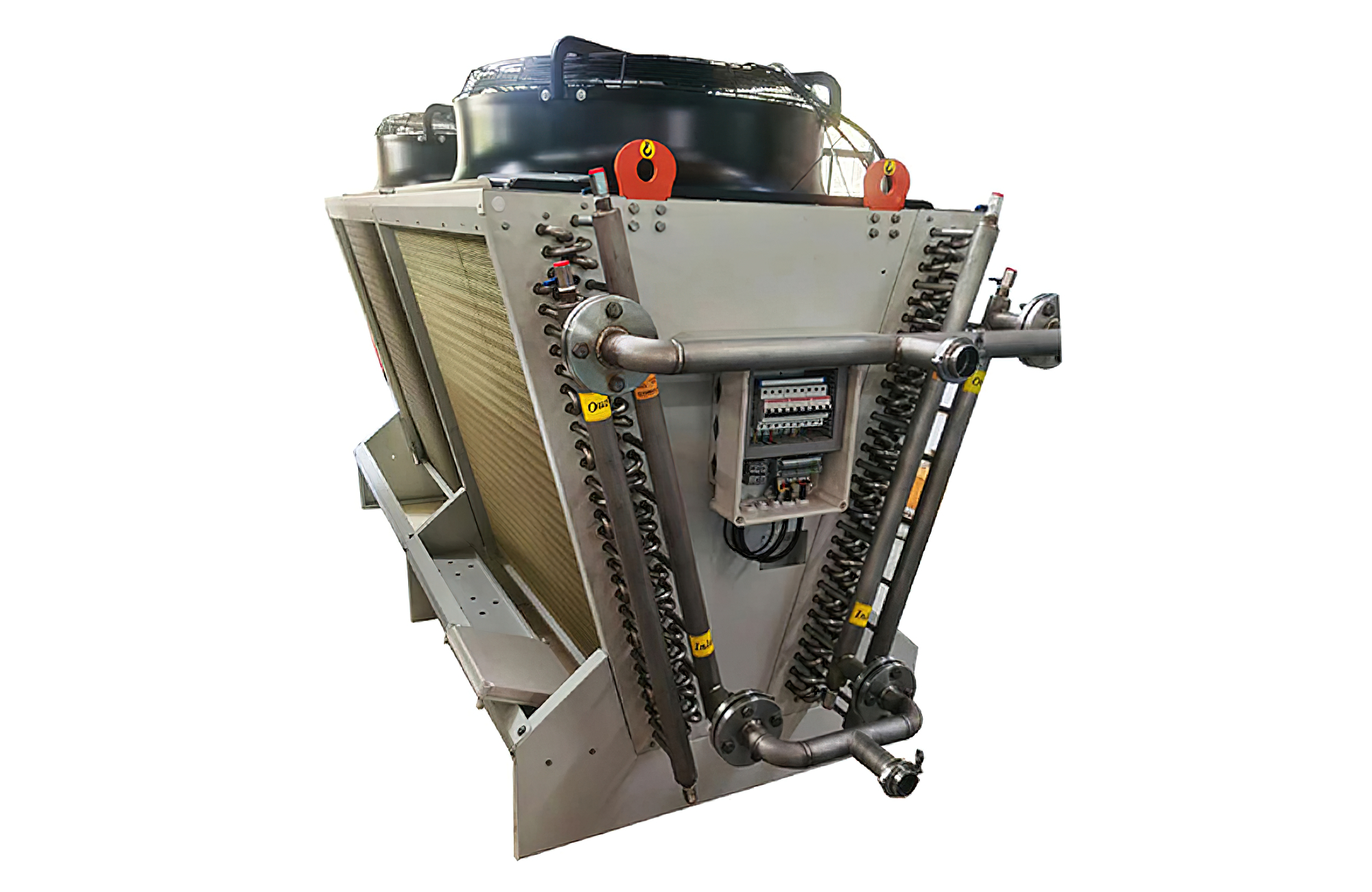

Generator Remote Radiator is heat exchanger device that consists of a series of tubes and fins. Air passes over the fins, which are attached to the tubes carrying the hot fluid. This design increases the surface area for heat transfer, allowing the cooler to efficiently dissipate heat from the fluid into the surrounding air.

Email: sales@immersion-energy.com

Tel: 00862135324116

Whatsapp: 8613916147965

Remote Radiator

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Advantages：

●Efficient Heat Dissipation: Fins increase the heat exchange area, enabling quick heat transfer from the working medium to the air.
●Water Conservation: Uses air as a cooling medium, eliminating the need for water, ideal for areas with scarce water resources.
●Strong Adaptability: Operates reliably in high-temperature and high-pressure environments, suitable for power, petrochemical, and metallurgical industries.
●Compact Structure: Designed for a small footprint, making it easy to install in limited spaces.
●Low Operating Costs: Air cooling reduces the need for water and chemicals, lowering long-term costs.
●Simple Maintenance: The straightforward design facilitates easy inspection and cleaning, reducing maintenance efforts.
●Low Noise: Equipped with low-noise fans and vibration damping, minimizing environmental impact.
●High Reliability: With no complex water systems, the failure rate is low, ensuring reliable operation.
●Customizable Length: Can be made in extended lengths, suitable for demanding applications.

Application：

Suitable for environments with limited water resources or where water cooling is not feasible, commonly used in cooling processes in industries such as power generation, petrochemicals, and metallurgy.

References：

Technical Data

Remote Radiator SHSL-D1 series parameter(fin space 2.1mm)

Type							SHSL-D1-028-1x630	SHSL-D1-034-1x630	SHSL-D1-041-1x630	SHSL-D1-058-2x630	SHSL-D1-068-2x630	SHSL-D1-083-2x630	SHSL-D1-106-3x630	SHSL-D1-124-3x630	SHSL-D1-137-4x630
Capacity	Water	35℃ outdoor temp.	Inlet	45℃,	△	KW	28.09	33.62	41.21	58.15	68.48	82.96	105.68	123.65	137.29
	Water		outlet	40℃	Y		23.83	27.87	33.35	49.31	56.77	67.29	88.00	100.23	113.90
	20% Glycol		Inlet	45℃	△		26.76	32.42	40.26	56.39	66.53	80.66	102.54	120.23	133.30
	20% Glycol		outlet	40℃	Y		22.71	26.90	32.61	47.84	55.20	65.48	85.44	97.54	110.66
Medium		Water flow				M3/h	5.00	6.00	7.20	10.00	12.00	14.50	18.40	21.50	24.00
Medium		Pressure drop				kPa	50	46	82	85	73	49	70	47	70
Air flow					△	M3/h	19029	18289	16864	38056	36576	33728	54861	50593	73152
Air flow					Y	M3/h	14664	13945	12817	29327	27889	25633	41830	38450	55777
Fan motor					Phase		3	3	3	3	3	3	3	3	3
					△	W	2750	2750	2750	5500	5500	5500	8250	8250	11000
					Y	W	1750	1750	1750	3500	3500	3500	5250	5250	7000
					△	A	5.10	5.10	5.10	10.2	10.2	10.2	15.3	15.3	20.4
					Y	A	3.00	3.00	3.00	6.00	6.00	6.00	9.00	9.00	12.00
Fan					No X φ		1x1x630	1x1x630	1x1x630	2x1x630	2x1x630	2x1x630	3x1x630	3x1x630	2x2x630
Sound pressure level					△	dB(A)	59	59	59	61	61	61	63	63	64
Sound pressure level					Y	10m	52	52	52	54	54	54	56	56	57
Dimension					L	mm	1580	1580	1580	2880	2880	2880	4180	4180	2930
					W	mm	1085	1085	1085	1085	1085	1085	1085	1085	2100
					H	mm	920	920	920	920	920	920	920	920	1070
					A	mm	1340	1340	1340	--	--	--	--	--	--
					B	mm	--	--	--	1340	1340	1340	1340	1340	1340
					C	mm	--	--	--	1300	1300	1300	1300	1300	1300
					D	mm	640	640	640	640	640	640	640	640	640
Inlet φ						mm	1-1/2”	1-1/2”	1-1/2”	2”	2”	2”	2-1/2”	2-1/2”	2-1/2”
Inlet φ						mm	1-1/2”	1-1/2”	1-1/2”	2”	2”	2”	2-1/2”	2-1/2”	2-1/2”
Product weight(empty)						kg	132	138	156	237	261	303	379	444	540

Type							SHSL-D1-166-4x630	SHSL-D1-211-6x630	SHSL-D1-247-6x630	SHSL-D1-286-8x630	SHSL-D1-334-8x630	SHSL-D1-360-10x630	SHSL-D1-415-10x630	SHSL-D1-502-12x630	SHSL-D1-565-14x630	SHSL-D1-649-16x630
Capacity	Water	35℃ outdoor temp.	Inlet	45℃,	△	KW	165.92	211.36	247.3	286.15	334.49	359.72	415.31	502.25	565.18	649.48
	Water		outlet	40℃	Y		134.59	176.00	200.45	238.3	270.889	298.57	335.225	405.20	459.3	527.59
	20% Glycol		Inlet	45℃	△		161.32	205.08	240.46	280.05	327.72	351.3	406.48	493.40	554.21	638.44
	20% Glycol		outlet	40℃	Y		130.96	170.87	195.07	233.18	265.64	291.81	328.48	398.45	450.87	519.13
Medium		Water flow				M3/h	29.00	37	43	50	58	63	72	88	98	113
Medium		Pressure drop				kPa	50	70	47	97	95	92	70	97	96	95
Air flow					△	M3/h	67455	109723	101185	146293	134908	179502	164442	197326	230584	263503
Air flow					Y	M3/h	51265	83661	76900	111544	102528	136437	124680	149612	174710	199665
Fan motor					Phase		3	3	3	3	3	3	3	3	3	3
					△	W	1100	16500	16500	22000	22000	27500	27500	33000	38500	44000
					Y	W	700	10500	10500	14000	14000	17500	17500	21000	24500	28000
					△	A	20.4	30.6	30.6	40.8	40.8	51.00	51.00	61.20	71.40	81.60
					Y	A	12.00	18.00	18.00	24.00	24.00	30.00	30.00	36.00	42.00	48.00
Fan					No X φ		2X2X630	2x3x630	2x3x630	2x4x630	2x4x630	2x5x630	2x5x630	2x6x630	2x7x630	2x8x630
Sound pressure level					△	dB(A)	64	66	66	67	67	68	68	68	69	69
Sound pressure level					Y	10m	57	59	59	60	60	61	61	61	62	62
Dimension					L	mm	2930	4230	4230	5530	5530	6830	6830	8130	9430	10730
					W	mm	2100	2100	2100	2100	2100	2100	2100	2100	2100	2100
					H	mm	1070	1070	1070	1070	1070	1120	1120	1120	1120	1120
					A	mm	--	--	--	--	--	--	--	--	--	--
					B	mm	1340	1340	1340	1340	1340	1340	1340	1340	1340	1340
					C	mm	1300	1300	1300	1300	1300	1300	1300	1300	1300	1300
					D	mm	640	640	640	640	640	640	640	640	640	640
Inlet φ						mm	3”	3”	3”	DN100	DN100	DN100	DN125	DN125	2XDN125	2XDN125
Inlet φ						mm	3”	3”	3”	DN100	DN100	DN100	DN125	DN125	2XDN125	2XDN125
Product weight(empty)						kg	658	689	760	1105	1270	1320	1420	1584	1848	2112

Note: Standard SHSL-D1 remote radiator is vertical air discharge, for horizontal air discharge please add “H” in nomenclature, for excmple:SHSL-D1-005H-1X350
