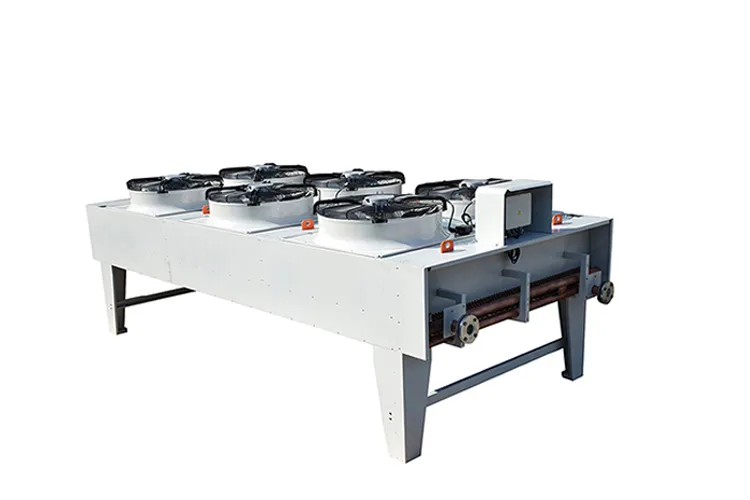

Dry Cooler Horizontal Double-Row
MIC.webp)
Performance range:
(water, Tw1=40°C, Tw2=35°C, T1=25°C)
● Capacity from 69to 3212kW
● Air volume: from 2819 ~ 64356 m3/h
● Sound pressure level: from 31 to 64 dB A(10m)
Fans:
● Diameter Ø630, 800, 910, 1250, 1800mm, AC or EC motor.
● Only choose low-specific energy consumption fans.
● Fan nozzle designs for maximum airflow and air throw.
● Our fans from the world`s leading manufacturer are practically proved to be reliable in operation and long-lasting.
● Motor: protection class IP 54 and insulation class F.
● Voltage：400V/3N/50Hz
● Air separator for each fan.
Benefits:
● Maximum performance, minimum footprint.
● High-efficiency geometry.
● Modular design, 1~28fans.
● Piping in copper or stainless steel AISI 304 or AISI 316L.
● Finned pack available in a wide range of materials.
Testing:
● Dry coolers are supplied clean and tested at a pressure of 30 bars
Options:
● Coil design refrigerant: water, oil, glycol, BC888, Shell S3X, and S5X.
● Multiple circuits.
● Sub-cooling circuits.
● Stainless steel or aluminum casing.
● Epoxy resin aluminum or copper fins.
● Explosion-proof motor.
● Customized fin spacing.
