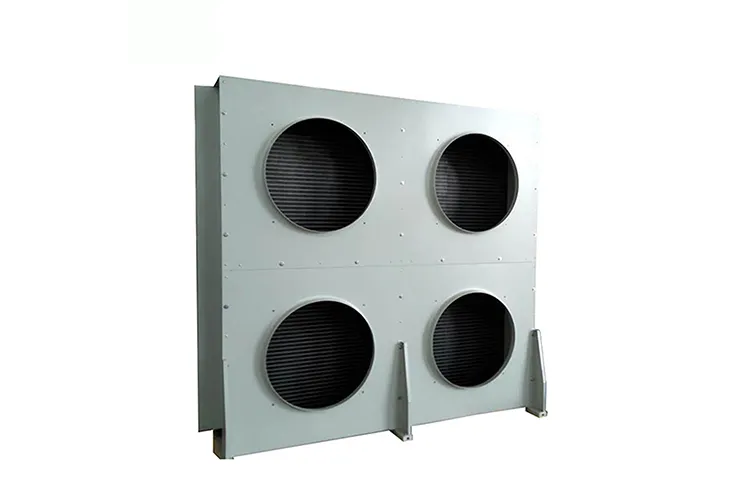

Vertical Dry Cooler

Email: sales@immersion-energy.com

Tel: 00862135324116

Whatsapp: 8613916147965

Vertical Dry Cooler

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Features

Air discharge direction

Performance ranges

· Cooling capacity: from 5 to 649 kW
· Air volume: from 2828 to 263503 m3/h
· Sound pressure level: from 31 to 69 dB A(10m)
· Dry coolers: customized on demand

High efficiency heat exchanger

· Capacity designs for maximizing the heat transfer relative to the energy consumption of the fan
· Tube and tube coupling design for low pressure drop in the coil on the media sides（maximum 100KPa at water designing condition）
· Our thermodynamic and aerodynamic designing software is long year tested and proved in Germany

Fan

· Only choose low specific energy consumption fans
· Fan nozzle designs for maximum air flow and air throw
· Our fans from the world`s leading manufacturer are practically proved to be reliable in operation and long lasting
· Motor: protection class IP 54 and insulation class F
· Voltage：400V/3N/50Hz
· Air separator for each fan

Testing

· Heat exchangers are supplied clean and tested at a pressure of 30 bars

Options

· Coil design refrigerant: water, oil, glycol
· Multiple circuits
· Sub-cooling circuits
· Stainless steel or aluminum casing
· Coated aluminum or copper fins
· Explosion ploof motor
· Customized fin spacing

Technical Data

Type							D1-005-1x350	D1-006-1x350	D1-007-1x350	D1-009-1x450	D1-011-1x450	D1-013-1x450	D1-014-1x500	D1-017-1x500	D1-020-1x500
Capacity	Water	35℃ outdoor temp.	Inlet	45℃,	△	KW	4.89	5.90	6.83	9.39	10.99	13.33	14.32	17.01	19.80
			outlet	40℃	Y
	20% Glycol		Inlet	45℃	△		4.72	5.69	6.69	8.90	10.61	13.05	13.91	16.11	19.29
			outlet	40℃	Y
Medium		Water flow				M3/h	0.85	1.03	1.20	1.63	1.91	2.30	2.50	3.00	3.50
		Pressure drop				kPa	36.00	31.00	58.00	25.00	40	80	50	60	40
Air flow					△	M3/h	2828	2712	2492	6199	5827	5225	8469	8168	7601
					Y
Fan motor					Phase		1	1	1	3	3	3	3	3	3
					△	W	140	140	140	540	540	540	830	830	830
					Y
					△	A	0.60	0.60	0.60	1.10	1.10	1.10	1.45	1.45	1.45
					Y
Fan					No X φ		1x1x350	1x1x350	1x1x350	1x1x450	1x1x450	1x1x450	1x1x500	1x1x500	1x1x500
Sound pressure level					△	dB(A)	31	31	31	43	43	43	49	49	49
					Y	10m
Dimension					L	mm	870	870	870	1020	1020	1020	1220	1220	1220
					W	mm	525	525	525	625	625	625	825	825	825
					H	mm	797	797	797	820	820	820	870	870	870
					A	mm	690	690	690	840	840	840	1040	1040	1040
					B	mm	--	--	--	--	--	--	--	--	--
					C	mm	--	--	--	--	--	--	--	--	--
					D	mm	490	490	490	490	490	490	490	490	490
Inlet φ						mm	3/4”	3/4”	3/4”	1”	1”	1”	1-1/4”	1-1/4”	1-1/4”
Inlet φ						mm	3/4”	3/4”	3/4”	1”	1”	1”	1-1/4”	1-1/4”	1-1/4”
Product weight(empty)						kg	38	42	48	55	60	67	75	82	91

Type							SHSL-D1-028-1x630	SHSL-D1-034-1x630	SHSL-D1-041-1x630	SHSL-D1-058-2x630	SHSL-D1-068-2x630	SHSL-D1-083-2x630	SHSL-D1-106-3x630	SHSL-D1-124-3x630	SHSL-D1-137-4x630
Capacity	Water	35℃ outdoor temp.	Inlet	45℃,	△	KW	28.09	33.62	41.21	58.15	68.48	82.96	105.68	123.65	137.29
	Water		outlet	40℃	Y		23.83	27.87	33.35	49.31	56.77	67.29	88.00	100.23	113.90
	20% Glycol		Inlet	45℃	△		26.76	32.42	40.26	56.39	66.53	80.66	102.54	120.23	133.30
	20% Glycol		outlet	40℃	Y		22.71	26.90	32.61	47.84	55.20	65.48	85.44	97.54	110.66
Medium		Water flow				M3/h	5.00	6.00	7.20	10.00	12.00	14.50	18.40	21.50	24.00
Medium		Pressure drop				kPa	50	46	82	85	73	49	70	47	70
Air flow					△	M3/h	19029	18289	16864	38056	36576	33728	54861	50593	73152
Air flow					Y	M3/h	14664	13945	12817	29327	27889	25633	41830	38450	55777
Fan motor					Phase		3	3	3	3	3	3	3	3	3
					△	W	2750	2750	2750	5500	5500	5500	8250	8250	11000
					Y	W	1750	1750	1750	3500	3500	3500	5250	5250	7000
					△	A	5.10	5.10	5.10	10.2	10.2	10.2	15.3	15.3	20.4
					Y	A	3.00	3.00	3.00	6.00	6.00	6.00	9.00	9.00	12.00
Fan					No X φ		1x1x630	1x1x630	1x1x630	2x1x630	2x1x630	2x1x630	3x1x630	3x1x630	2x2x630
Sound pressure level					△	dB(A)	59	59	59	61	61	61	63	63	64
Sound pressure level					Y	10m	52	52	52	54	54	54	56	56	57
Dimension					L	mm	1580	1580	1580	2880	2880	2880	4180	4180	2930
					W	mm	1085	1085	1085	1085	1085	1085	1085	1085	2100
					H	mm	920	920	920	920	920	920	920	920	1070
					A	mm	1340	1340	1340	--	--	--	--	--	--
					B	mm	--	--	--	1340	1340	1340	1340	1340	1340
					C	mm	--	--	--	1300	1300	1300	1300	1300	1300
					D	mm	640	640	640	640	640	640	640	640	640
Inlet φ						mm	1-1/2”	1-1/2”	1-1/2”	2”	2”	2”	2-1/2”	2-1/2”	2-1/2”
Inlet φ						mm	1-1/2”	1-1/2”	1-1/2”	2”	2”	2”	2-1/2”	2-1/2”	2-1/2”
Product weight(empty)						kg	132	138	156	237	261	303	379	444	540

Type							D1-166-4x630	D1-211-6x630	D1-247-6x630	D1-286-8x630	D1-334-8x630	D1-360-10x630	D1-415-10x630	D1-502-12x630	D1-565-14x630	D1-649-16x630
Capacity	Water	35℃ outdoor temp.	Inlet	45℃,	△	KW	165.92	211.36	247.3	286.15	334.49	359.72	415.31	502.25	565.18	649.48
	Water		outlet	40℃	Y		134.59	176.00	200.45	238.3	270.889	298.57	335.225	405.20	459.3	527.59
	20% Glycol		Inlet	45℃	△		161.32	205.08	240.46	280.05	327.72	351.3	406.48	493.40	554.21	638.44
	20% Glycol		outlet	40℃	Y		130.96	170.87	195.07	233.18	265.64	291.81	328.48	398.45	450.87	519.13
Medium		Water flow				M3/h	29.00	37	43	50	58	63	72	88	98	113
Medium		Pressure drop				kPa	50	70	47	97	95	92	70	97	96	95
Air flow					△	M3/h	67455	109723	101185	146293	134908	179502	164442	197326	230584	263503
Air flow					Y	M3/h	51265	83661	76900	111544	102528	136437	124680	149612	174710	199665
Fan motor					Phase		3	3	3	3	3	3	3	3	3	3
					△	W	1100	16500	16500	22000	22000	27500	27500	33000	38500	44000
					Y	W	700	10500	10500	14000	14000	17500	17500	21000	24500	28000
					△	A	20.4	30.6	30.6	40.8	40.8	51.00	51.00	61.20	71.40	81.60
					Y	A	12.00	18.00	18.00	24.00	24.00	30.00	30.00	36.00	42.00	48.00
Fan					No X φ		2X2X630	2x3x630	2x3x630	2x4x630	2x4x630	2x5x630	2x5x630	2x6x630	2x7x630	2x8x630
Sound pressure level					△	dB(A)	64	66	66	67	67	68	68	68	69	69
Sound pressure level					Y	10m	57	59	59	60	60	61	61	61	62	62
Dimension					L	mm	2930	4230	4230	5530	5530	6830	6830	8130	9430	10730
					W	mm	2100	2100	2100	2100	2100	2100	2100	2100	2100	2100
					H	mm	1070	1070	1070	1070	1070	1120	1120	1120	1120	1120
					A	mm	--	--	--	--	--	--	--	--	--	--
					B	mm	1340	1340	1340	1340	1340	1340	1340	1340	1340	1340
					C	mm	1300	1300	1300	1300	1300	1300	1300	1300	1300	1300
					D	mm	640	640	640	640	640	640	640	640	640	640
Inlet φ						mm	3”	3”	3”	DN100	DN100	DN100	DN125	DN125	2XDN125	2XDN125
Inlet φ						mm	3”	3”	3”	DN100	DN100	DN100	DN125	DN125	2XDN125	2XDN125
Product weight(empty)						kg	658	689	760	1105	1270	1320	1420	1584	1848	2112

Application

Industrial area: air conditioning, process engineering, unit-type heating/power station. It is suitable for all heat emission into air and erection in the open air.
